My PC Configuration koya-net.jpのPC環境をご紹介致します。 |
| Internet Backbone |
さくらインターネットの高速バックボーンに接続されたkoya-net.jpサーバと 自宅サーバのバックボーン回線であるNTTフレッツ光クロスをv6プラス 固定IP接続(IPoE IPv4 over IPv6)にて1回線運用しています。 koya-net.jpでは無停電電源装置、空調が完備されています。 NTT Flet's Hikari Xross---JPIX/IPv6: IPoE DHCPv6-PD(/56) IPv4: v6Plus(IPIP tunnel) SAKURA Internet---------koya-net.jp Server |
| Local Network System | 10Gbps FullDuplex |

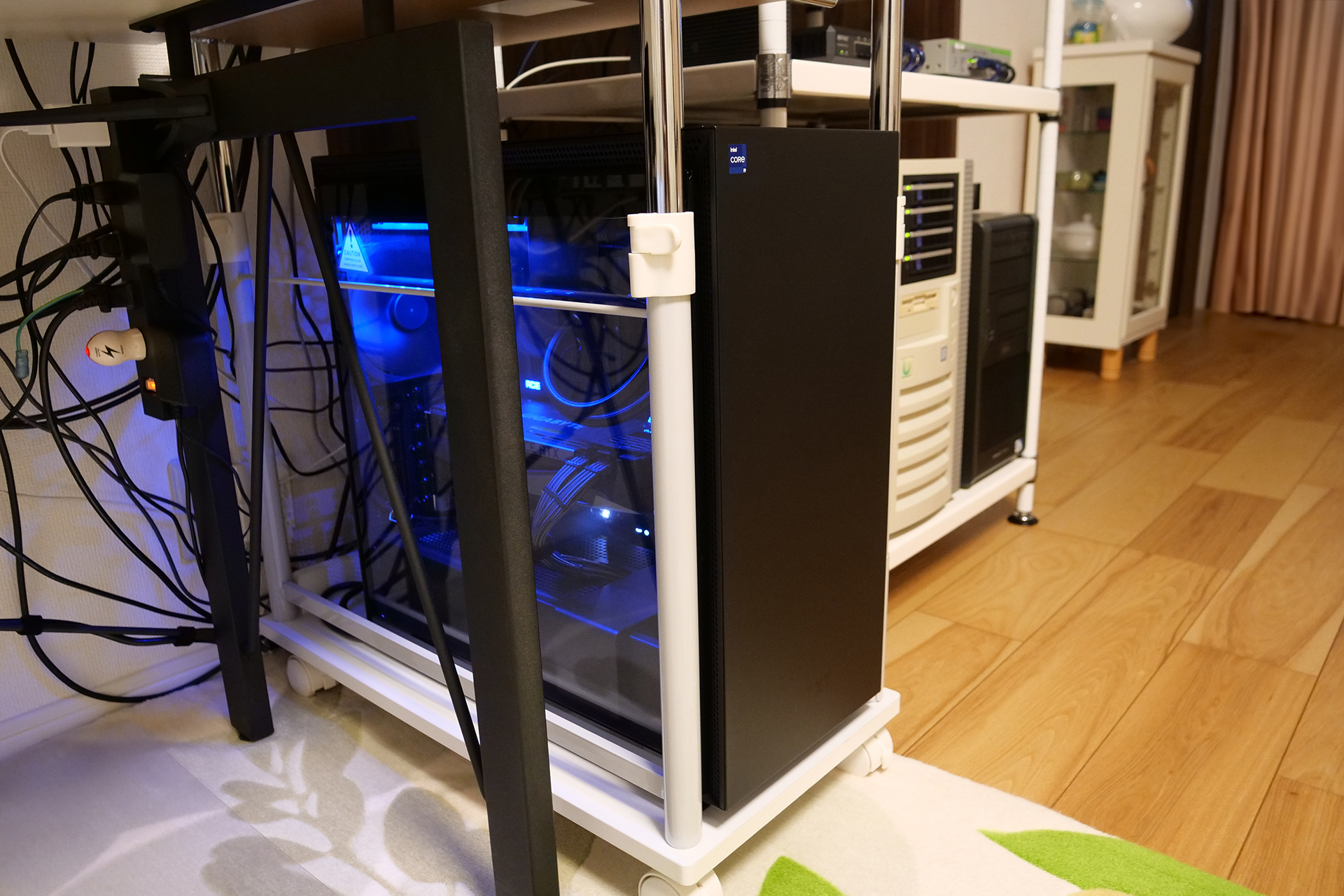

| [1号機]メイン機・開発・なんでも屋さん MDT-14Gi9Z79D5 Rev 3.11 | |
| |
| Type | 自作AT互換機 Ginie ACE MAX |
| Case | NZXT H710i Middle Tower ATX Case |
| Power Supply | MSI MEG Ai1300P PCIE5 1300W 80PLUS PLATINUM ATX Ver3.0 |
| Operating System | Microsoft Windows 11 Pro 23H2 |
| CPU | intel Core i9-14900KF Raptor Lake Refresh 3.20GHz TVB6.00GHz P-Core 8C/16T E-Core 16C/16T PBP125W LGA1700 |
| BCLK/Clock Multiplier | 100MHz*8-60 |
| CPU Cache | Smart Cache L2 32MB + L3 36MB |
| CPU Settings | PL1/2: 253W, CPU Current Limit: 307A, CPU Lite Load Control: Mode6 |
| CPU Cooler | EKWB EK-Nucleus AIO CR360 Dark |
| Mother Board | MSI MEG Z790 ACE MAX BIOS Ver.A.70(Update CPU Microcode 0x12C) |
| Chipset | intel Z790 Chipset |
| RAM | CORSAIR CMK128GX5M2B6400C42 DDR5-6400 64GB CL42 Dual Channel DDR5-SDRAM(64GB*2=128GB) |
| Storage | intel Optane SSD 905P 960GB PCIe3.0x4 AIC NVMe 3D-Xpoint SSD(OS Boot/Application) SAMSUNG 990PRO MZ-V9P2T0BW 2TB PCIe4.0x4 M.2 NVMe 3D V-NAND TLC SSD*2(Storage Pool Simple RAID0/Work Space) |
| Video Card | ASUS PROART-RTX4080S-O16G GeForce RTX4080 SUPER 256bitGDDR6X-SDRAM16GB Cuda10240 Core2640MHz Memory23.0GHz |
| Display | EIZO FlexScan EV2785-BK(27.0V-inch 4K IPS TFT LCD/DisplayPort Connect) |
| Multi Card Reader | BUFFALO BSCR700U3BK USB3.2 Gen 1 UHS-II |
| LAN Card | Intel Ethernet Converged Network Adapter X550-T1 |

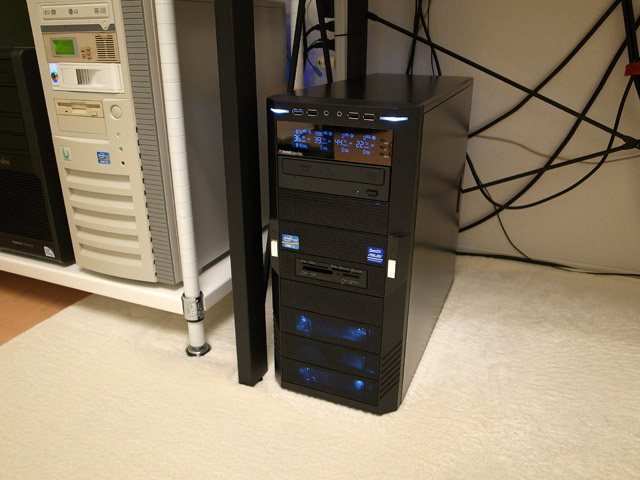

| [2号機]サブ機 GS-4700AM500 Rev 1.10 | |
 |
|
| Type | 自作AT互換機 「最速物欲大魔王」Ginie AORUS MASTER |
| Case | Sharkoon SHA-T9W-W Middle Tower ATX Case |
| Power Supply | Seasonic SS-760XP2S 760W 80PLUS PLATINUM ATX Ver2.3/EPS Ver2.92 |
| Operating System | Microsoft Windows 10 Pro 64bit 22H2 |
| CPU | intel Core i7-8700K Coffee Lake-S 3.70GHz TB4.70GHz 6C/12T TDP95W LGA1151 |
| BCLK/Clock Multiplier | 100MHz*8-47 |
| CPU Cache | Smart Cache 12MB |
| CPU Voltage | Vcore Offset -0.60V |
| CPU Cooler | Scythe SCMG-5000 MUGEN5（無限五） |
| Mother Board | GIGABYTE Z390 AORUS MASTER |
| Chipset | intel Z390 Chipset |
| RAM | G.SKILL F4-3200C16D-32GTZR DDR4-3200 16GB CL16 Dual Channel Unbuffered DDR4-SDRAM(16GB*2=32GB) |
| Storage | SAMSUNG SSD 970 EVO MZ-V7E500B/IT 500GB PCIe3.0x4 M.2 NVMe 3D V-NAND TLC SSD(OS Boot/Application) |
| Memory Card Reader | Miyoshi USR-DOS3 |
| Video Card | MSI GeForce GTX1080 GAMING X 8G 256bitGDDR5X-SDRAM8GB Core1822MHz SP2560 Memory10.1GHz |
| Display | ASUS VT229H(21.5V-inch 2K IPS TFT LCD/DisplayPort Connect) |
| Sound Card | ASUS Essence STX II PCI-Express 2.0ch Sound Card |
| Fan Controller | Lamptron CM430 |
| WiFi/BT | Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |

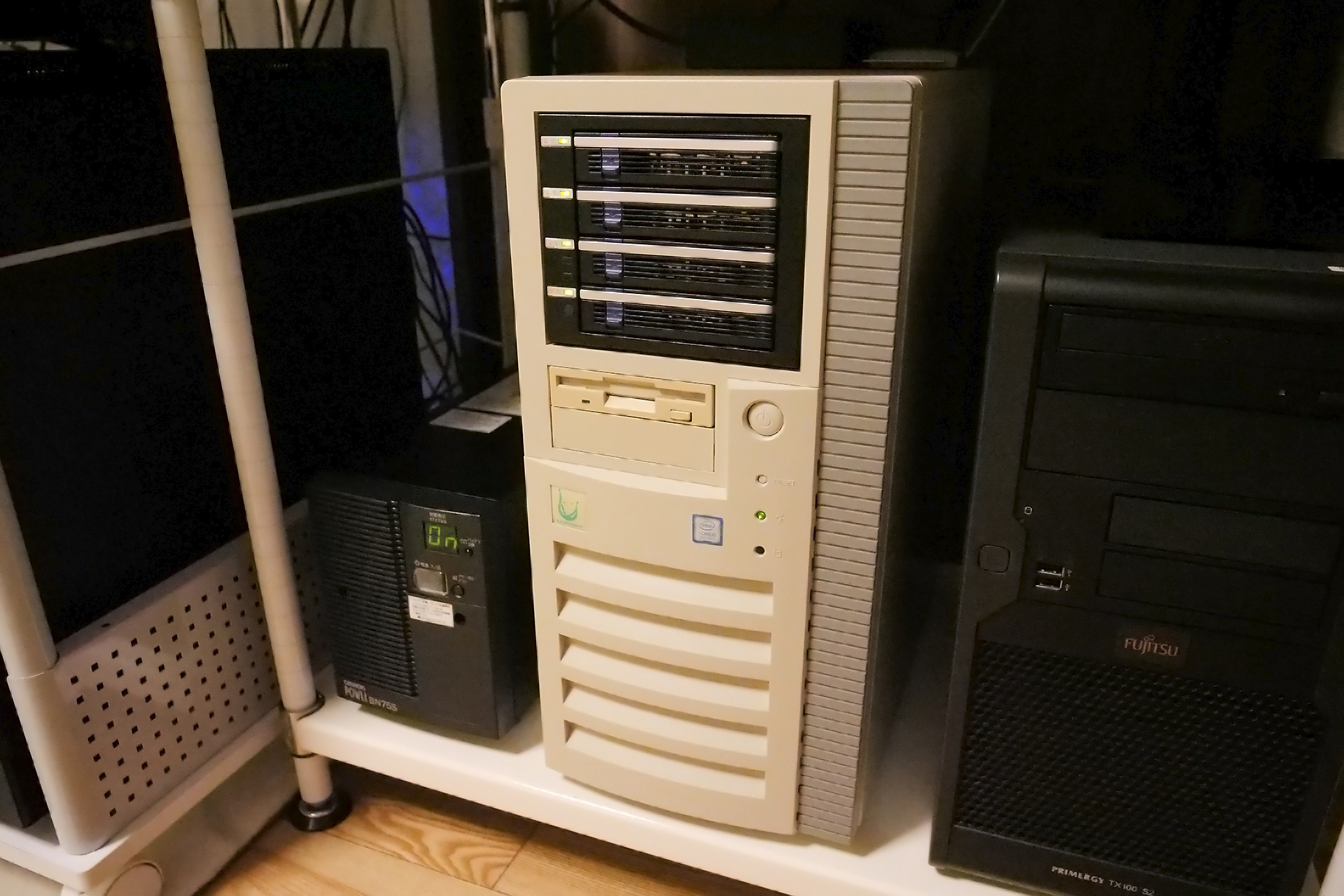

| [3号機]ファイルサーバ PS-4000SB100 Rev 8.02 | |
 |
|
| Type | 自作AT互換機 「最速物欲大魔王」PowerServer-Z |
| Case | CHENBRO MYCOM A2011 MID Tower Server Type ATX Case |
| Power Supply | Fractal Design Edison M 450W 80PLUS GOLD ATX Ver2.4/EPS Ver2.92 |
| Operating System | Microsoft Windows Server 2016 Standard |
| CPU | intel Core i5-8400 Coffee Lake-S 2.80GHz TB4.00GHz 6C/6T TDP65W LGA1151 |
| BCLK/Clock Multiplier | 100MHz*8-40 |
| CPU Cache | Smart Cache 9MB |
| CPU Voltage | Vcore 1.10V |
| CPU Cooler | Scythe KOTETSU Mark II |
| Mother Board | ASUS ROG STRIX Z370-F GAMING |
| Chipset | intel Z370 Chipset |
| SSD Interface Card | ASUS HYPER M.2 X16 GEN 4 Card |
| RAM | crucial W4U2666CM-16G DDR4-2666 16GB CL19 Dual Channel Unbuffered DDR4-SDRAM(16GB*2=32GB) |
| Storage | SAMSUNG SSD 860PRO MZ-76P256B/EC 256GB S-ATAIII6.0Gbps SSD(OS Boot/Application) Silicon Power P34A80 1TB PCIe3.0x4 M.2 NVMe 3D TLC SSD*2(Storage Tier SSD/DATA) WD WD60EFRX 6.0TB S-ATAIII6.0Gbps 7,200rpm HDD*4(Storage Tier HDD/DATA) I-O DATA EX-HD4CZ 4.0TB Extarnal USB3.0 HDD(Server Backup) |
| Video | intel UHD Graphics 630 |
| LAN | 10Gtek X540-10G-1T-X8 intel X540-T1 Compatible 10GbE Card |

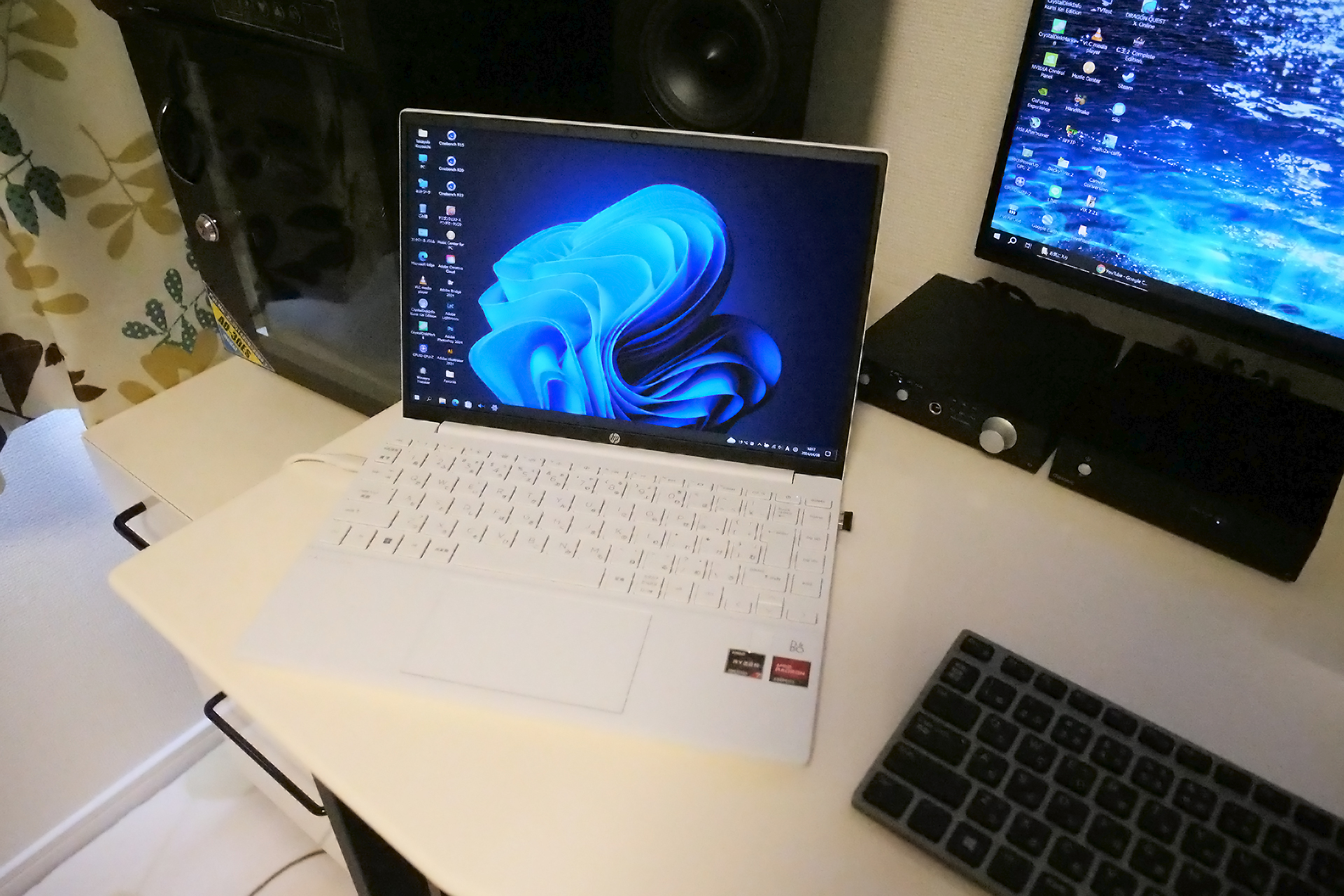

| [5号機]モバイルノート | |
 |
|
| Type | HP Pavilion Aero Laptop13-be1000 |
| Operating System | Microsoft Windows 11 Pro 23H2 |
| CPU | AMD Ryzen 7 5825U 2.00GHz TB4.50GHz 8C/16T TDP15W Socket FP6 |
| BCLK/Clock Multiplier | 100MHz*20-45 |
| CPU Cache | L1-L3 21.5MB |
| Mother Board | HP Orignal |
| RAM | DDR-4 3200 16GB Dual Channel Unbuffered DDR4-SDRAM |
| Storage | SAMSUNG PM991a MZVLQ512HBLU-00BH1 512GB PCIe3.0x4 M.2 NVMe TLC SSD |
| Video | AMD Radeon Graphics |
| Monitor | 13.3V" WUXGA IPS Display Resolution 1920*1200 Pixels |
| Wi-Fi | On-Board(IEEE802.11a/b/g/n/ac/ax) |

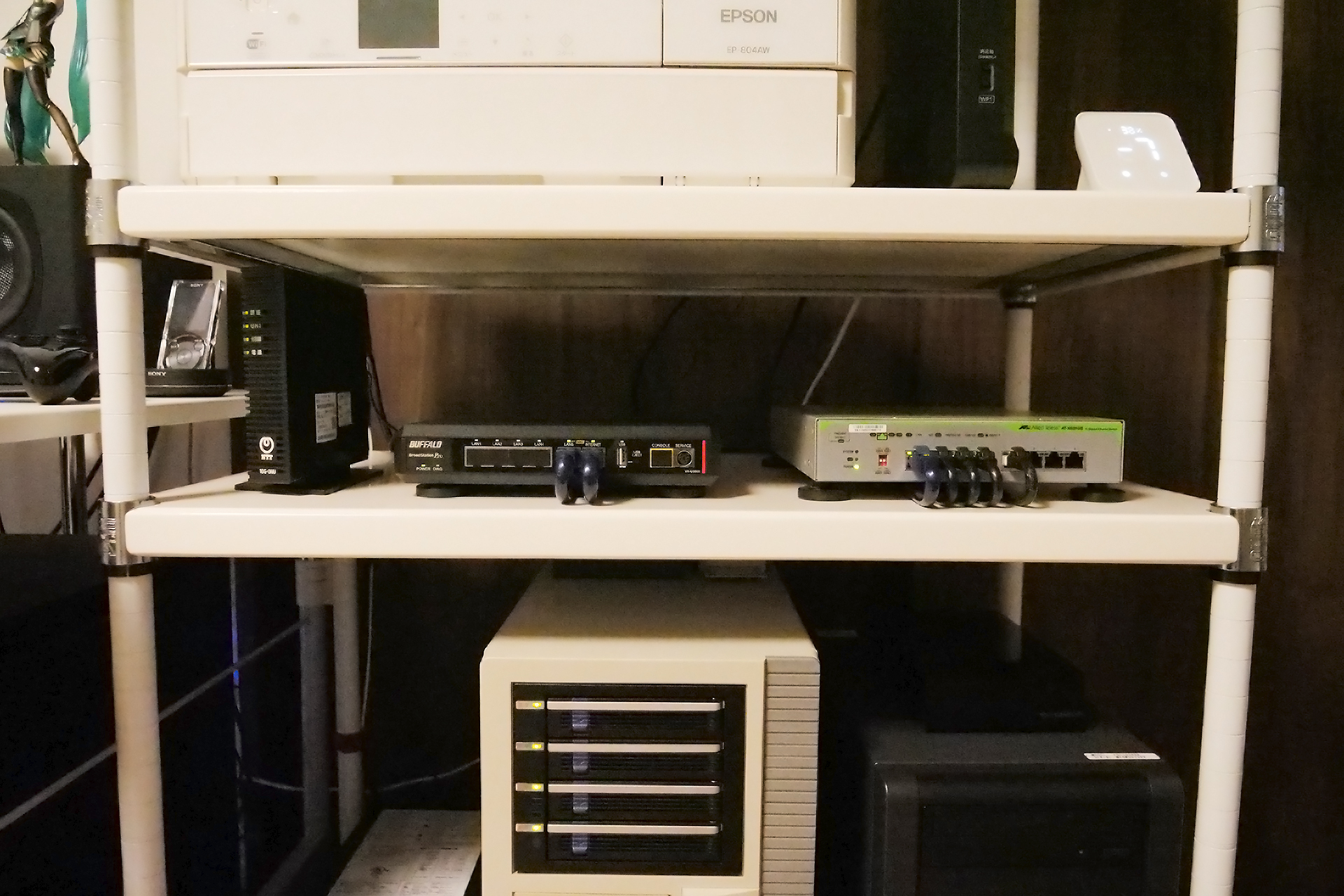

| 周辺機器 Peripheral Equipment | |
| |
| Printer/Scanner | EPSON EP-804AW |
| Digital Camera | Panasonic LUMIX G9Pro+LEICA DG VARIO-ELMARIT 12-60mm F2.8-4.0 ASPH. POWER O.I.S./Insta360 Ace Pro/RICOH GR Digital III |
| USB DAC | Olasonic NANO-D1 |
| Stereo Power Amplifier | Olasonic NANO-A1 |
| Speaker | ELAC BS72 |
| Active Subwoofer | Fostex PM-SUBmini2 |
| Audio Interface | PreSonus Revelator io24 |
| Smart Home Device | SwitchBot Hub2 |
| Smart Speaker | Amazon Echo Spot 2024 |
| ONU | NTT 10G-EPON |

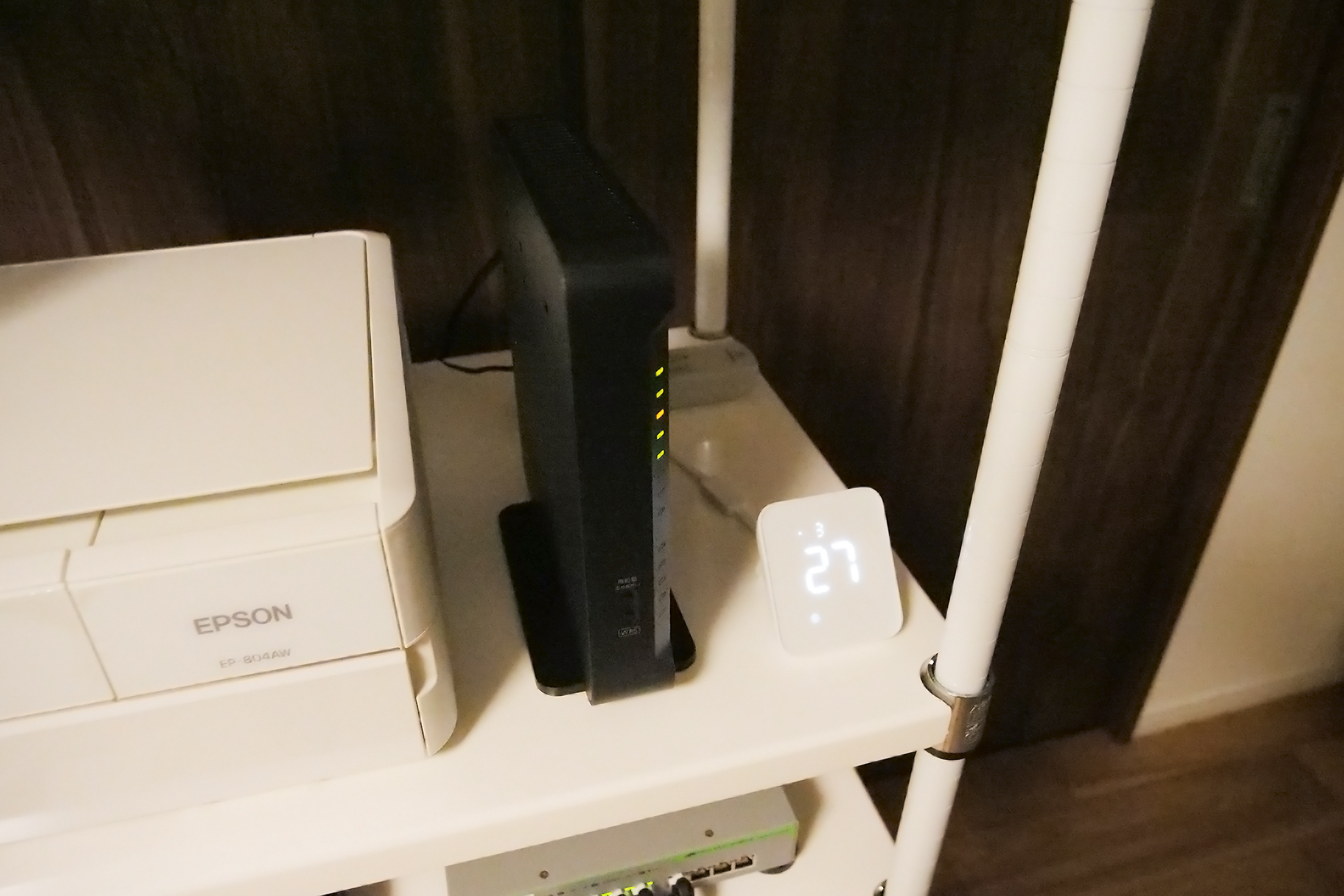

| WAN Access Router | BUFFALO VR-U500X |
| Wi-Fi AP | I-O DATA WN-DAX6000XR(IEEE802.11a/b/g/n/ac/ax) |
| L2 10GbE Switch | Allied Telesis AT-XS910/8(8Port) |
| Smart Phone | motorola edge 40 neo |
| UPS | OMRON BN75S 750VA/680W |
|
